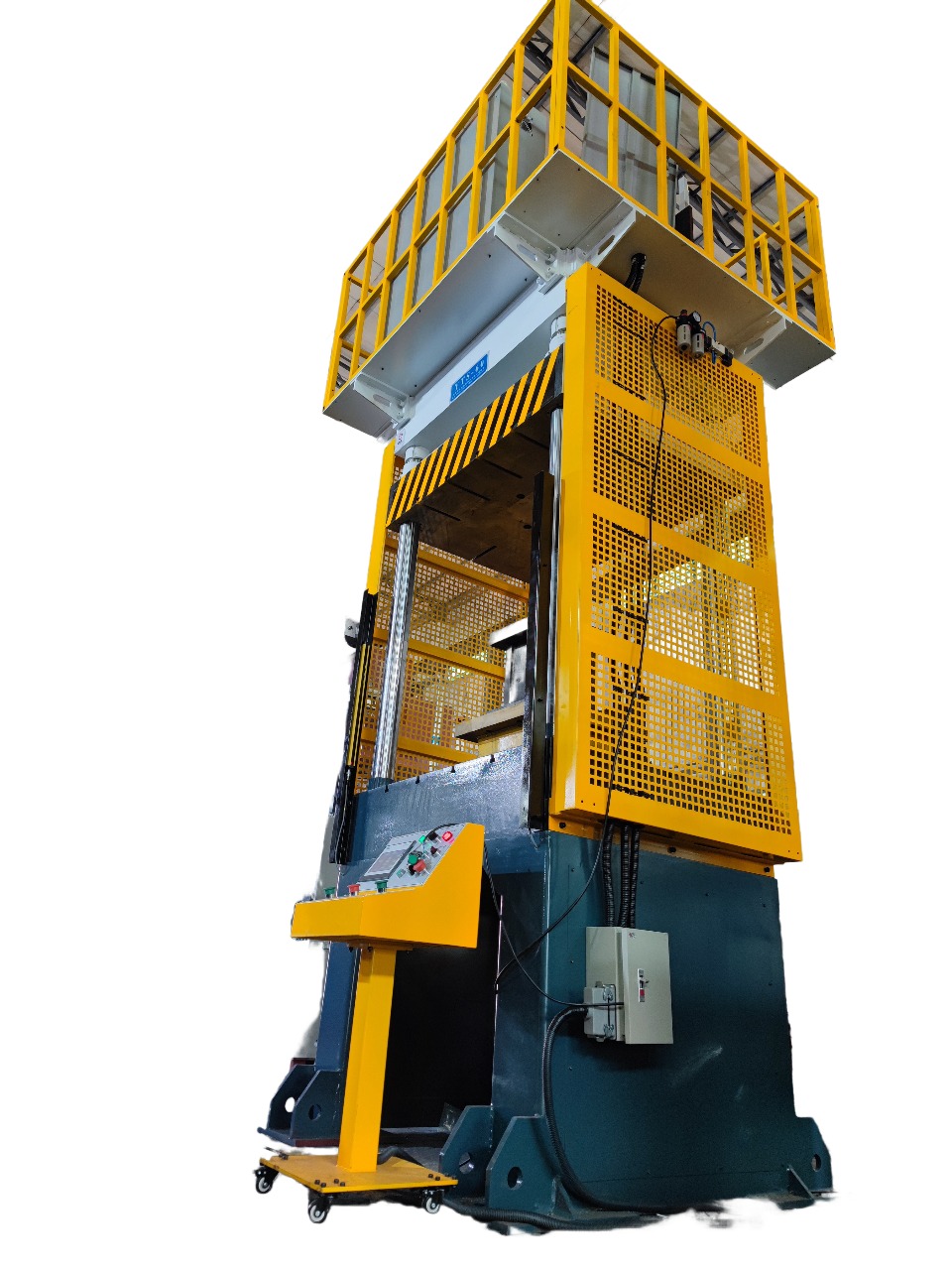

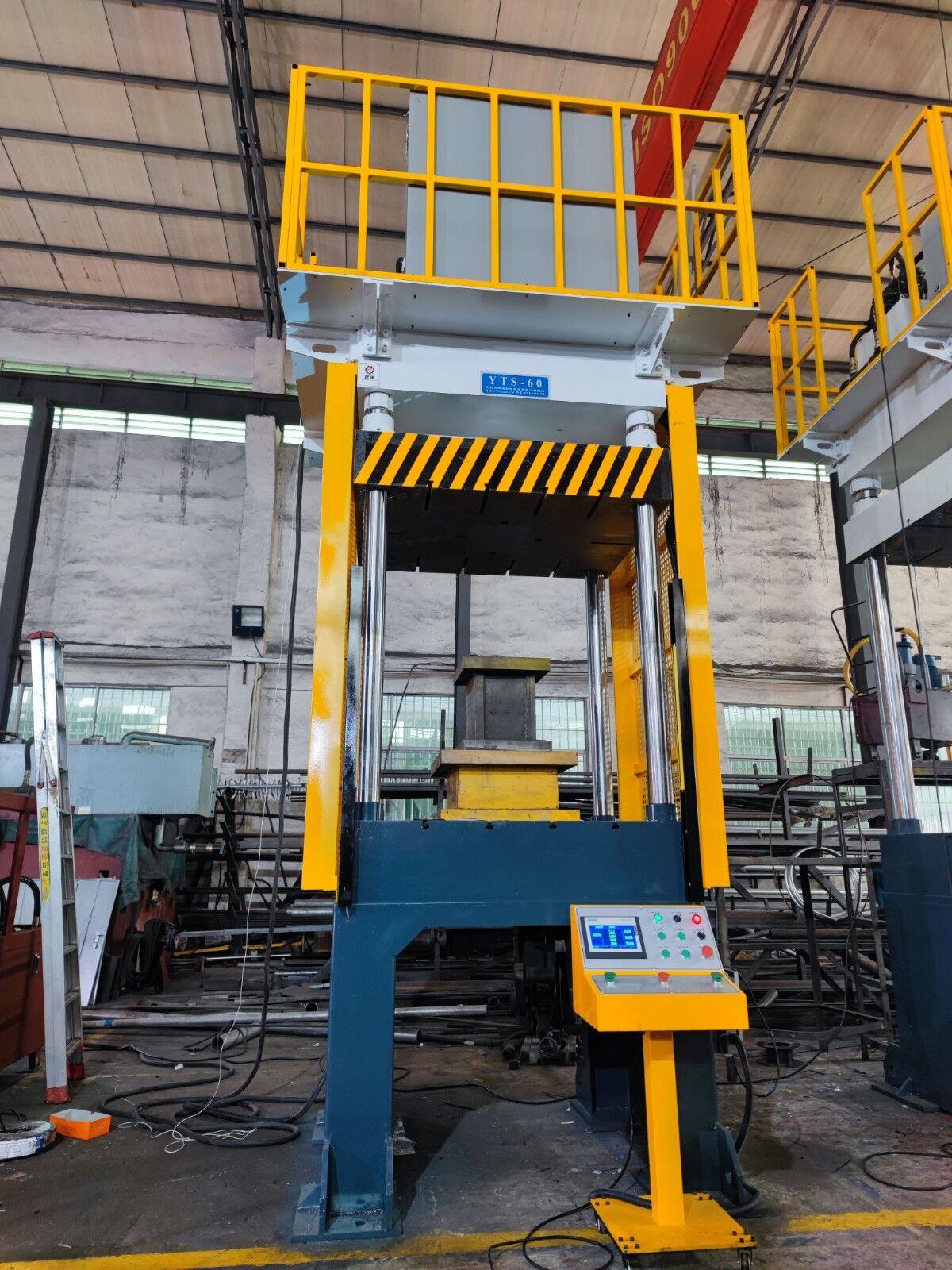

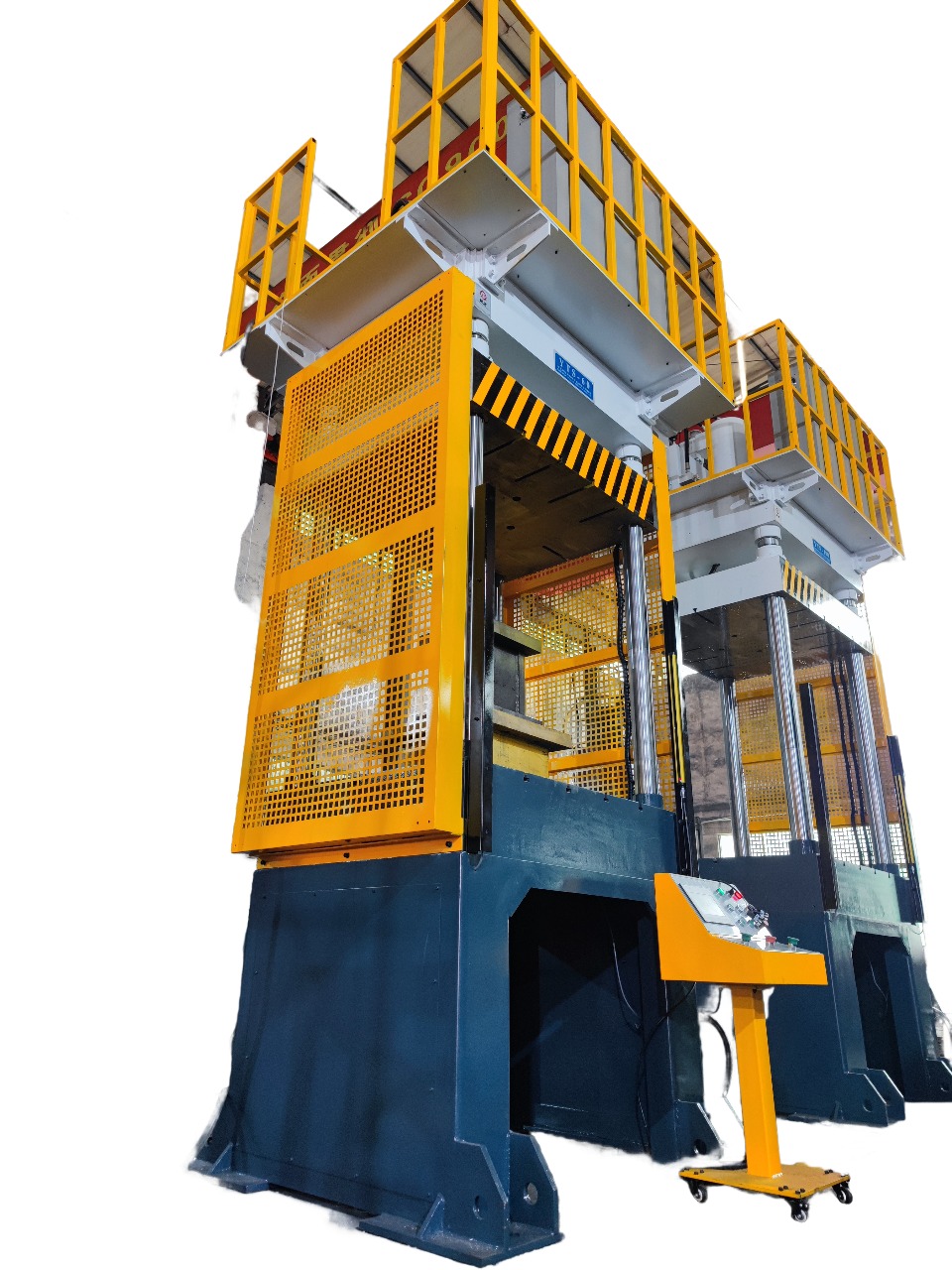

YT-X Series 100 Ton Four Column Hydraulic Press

How to Purchase A Hydraulic Press In Yintong


  • 1Online Consultation

  • 2Design a solution

  • 3Business negotiation

  • 4Assembly and production

  • 5Installation and testing

  • 6On-site installation

Why Yintong Hdraulic Press?

  • The world's top 500 cooperative suppliers

    The world's top 500 cooperative suppliers

  • National-level high-tech enterprise

    National-level high-tech enterprise

  • China Innovation Technology Fund Support

    China Innovation Technology Fund Support

  • Recognized as high-tech products in china

    Recognized as high-tech products in china

  • 2008 Quality Management System Certification

    2008 Quality Management System Certification

  • IQNET International Certification

    IQNET International Certification

Technical Parameter

The principle of 100 ton four column hydraulic press is a 100 ton hydraulic press that whit a four columns and three plates structure. This kinds of press transmit the hydraulic oil from the gear pump to the integrated hydraulic valve block, and the hydraulic oil in the gear pump will be distributed to the upper and lower chambers of the cylinder according to various orientation valves and speed control valves, and the hydraulic cylinder will move under the efficacy of Korakuen fluid. Hydraulic press is a kind of machine and equipment that uses liquid to spread the pressure. Hydraulic fluid follows Pascal's principle when transmitting working pressure in a closed glass container.



Yin Tong 100 ton four column hydraulic press features

The hydraulic transmission system of 100 ton four column hydraulic press is composed of driving force system, control system, actuator cylinder and auxiliary system. The driving force system generally selects the high pressure hydraulic pump as the driving force system, which is generally a gear hydraulic pump. One or several hydraulic pumps are selected to meet the customer's requirements for the speed of the hydraulic press. The gear hydraulic pump is used for low voltage (hydraulic pressure less than 2.5MP); the axial piston pump is used for medium pressure (hydraulic pressure less than 6.3MP); and the gear pump is used for high pressure (hydraulic pressure less than 32.0MP). A variety of plastic materials working pressure production processing forming, such as stainless steel extrusion, bending, Lashin and metal parts of cold extrusion forming, but also available to powder products, sand wheel pieces, rubber wood powder, epoxy resin thermosetting plastic products inhibition.

100 tons four column hydraulic press is simple, economic and good. The outer shape is octagonal. The control electric box selects glass door, PLC computer is Siemens system control or Japan Mitsubishi, work stable, maintenance convenient. Hydraulic system can be divided into separate control and centralized control system. There are mainly two ways to use: manual adjustment and fully automatic circulation system. Hydraulic machine control system can be integrated with insert valve system, stable action, long service life, so that the hydraulic machine impact is small, reduce the coupling pipeline and leakage, more durable than the general hydraulic machine manufacturers' products.

YinTong 100 tons four column hydraulic press scope of application

The 100 ton four column hydraulic press has universal practicality. Unlike the 200-ton four-column hydraulic press for large hardware, the 100 ton four column hydraulic press is suitable for pressing, bending and stretching of various small hardware and the production and processing of various plastic materials; it can also be applied to the pressing and forming of various plastic and powder products.

left view of ton four column hydraulic press100吨四柱液压机侧视图



Technical parameters of 100 four column hydraulic press

Technical parameters of 100 four column hydraulic press
