YTP-M Series 500 Ton Deep Drawing Hydraulic Press

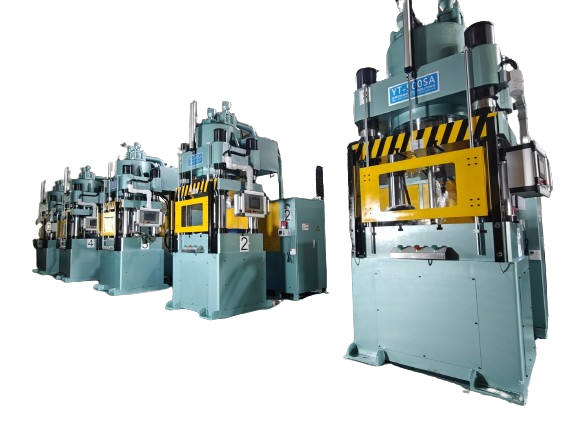

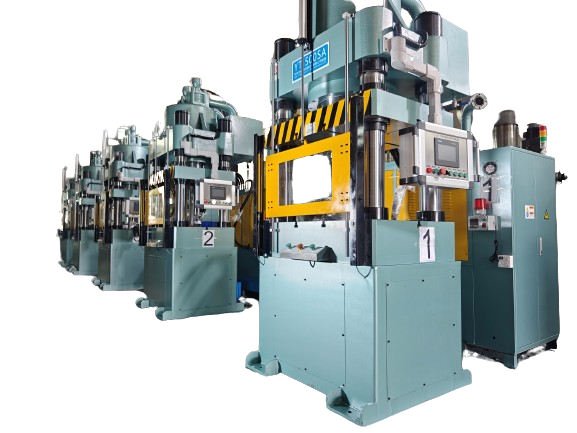

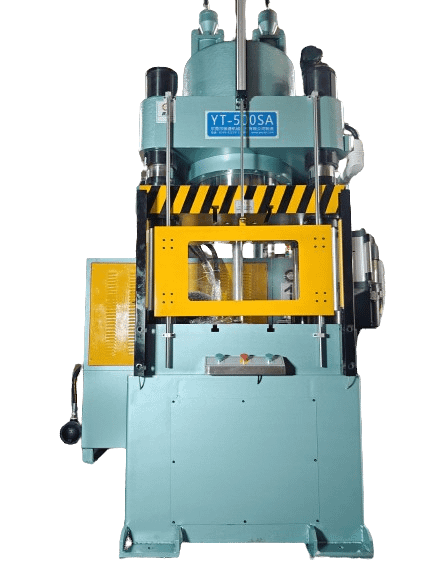

The picture of the 500 ton deep drawing hydraulic press

The usage of 600 ton deep drawing hydraulic press

The Yintong  Hydraulic Press Machine for 600 ton deep drawing hydraulic press is a product of 25 years of experience in the stamping industry. Designed with high-speed precision control, this press is tailored to meet the needs of stamping professionals worldwide.

It is ideal for the deep drawing and forming of a wide range of products such as tableware, kitchenware, metal covers for electric motors, household appliances, and lighting ware.

The main hydraulic press cylinder is made of alloy cast steel and features a finely ground inner surface. This provides increased durability and extends the working life of the machine even under high pressure.

1. The use of an advanced valve hydraulic system allows for increased reliability and reduced hydraulic shock during directional changes.
2. The primary hydraulic cylinder is composed of alloy cast steel and has undergone a precise grinding process to withstand high pressure.
3. Four columns strtucture is the same as four column hydraulic press , which possess high tensile strength, are constructed with alloy steel and have undergone a thorough grinding and hard chrome electroplating process.
4. Renowned German, American, and Japanese brands have been selected for the crucial hydraulic and electric components.
5. The swift approach of the movable working table enhances productivity.
6. A hydraulic ejector is integrated into the movable working table to remove the workpiece after drawing.
7. Energy efficiency is improved by 50-70% through the use of a servo control system.

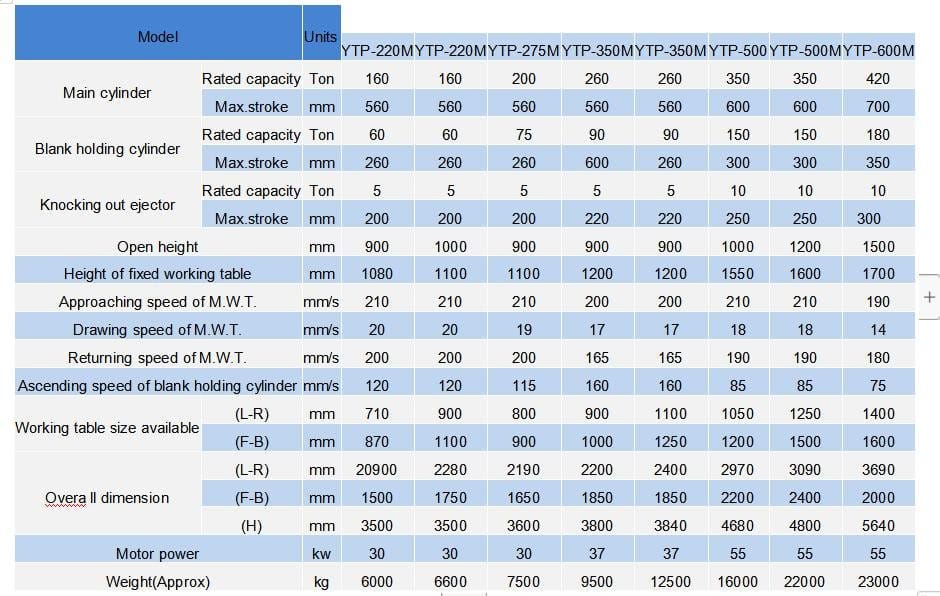

The technical specification of 600 ton deep drawing hydraulic press

The
