YTP-M Series 200 Ton Deep Drawing Hydraulic Press

The usage of 200 ton deep drawing hydraulic press

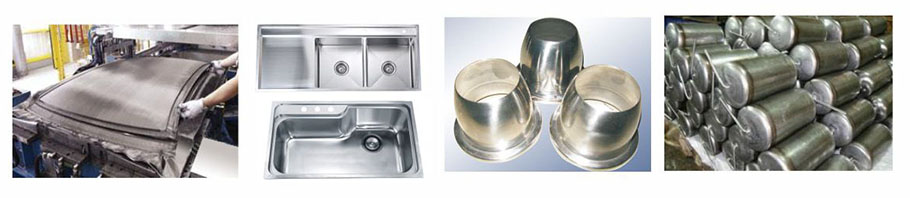

This kinds of hydraulic press machine is suitable for the deep drawing and shaping of various items, such as tableware, kitchenware, metal covers for electric motors, household appliances, and lighting fixtures.

The primary hydraulic cylinder is composed of alloy cast steel and has undergone precise grinding to ensure extended durability under high pressure conditions.

The product feature of 200 ton deep drawing hydraulic press

1. The implementation of an advanced dual-direction cartridge valve system ensures exceptional reliability and significantly reduces hydraulic shock during changes in direction.
2. The primary hydraulic cylinder is crafted from cast alloy steel, and its interior surface is meticulously honed to withstand high-pressure conditions.
3. The four columns are fabricated using high-tensile alloy steel, which is precisely ground and electroplated with robust chrome.
4. The critical hydraulic and electrical components utilized are renowned brands sourced from Germany, the USA, and Japan.
5. The swift approach velocity of the mobile worktable contributes to heightened productivity levels.
6. A hydraulic ejector has been seamlessly integrated onto the mobile worktable to facilitate the efficient removal of the workpiece following the drawing process.

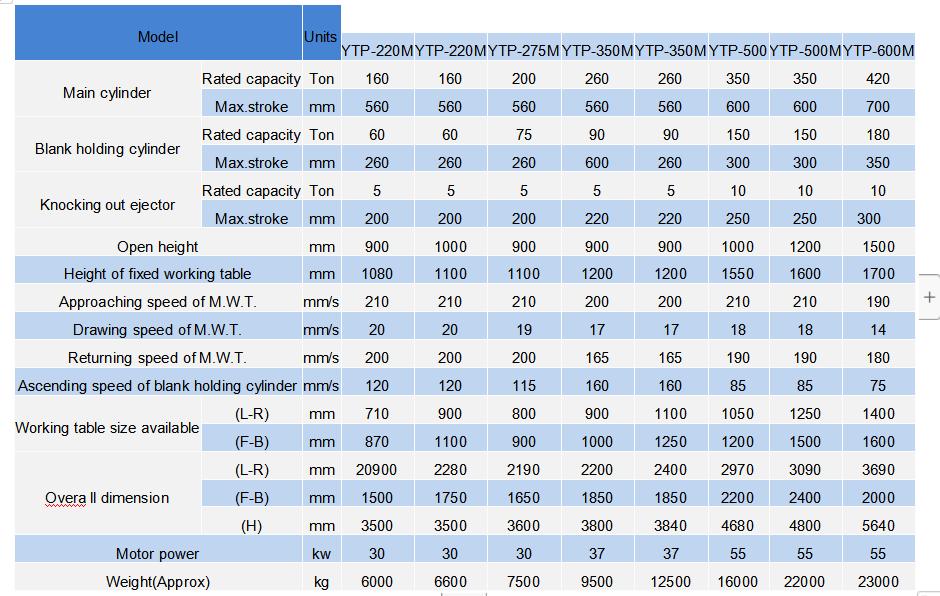

The technical specification of 200 ton deep drawing hydraulic press
