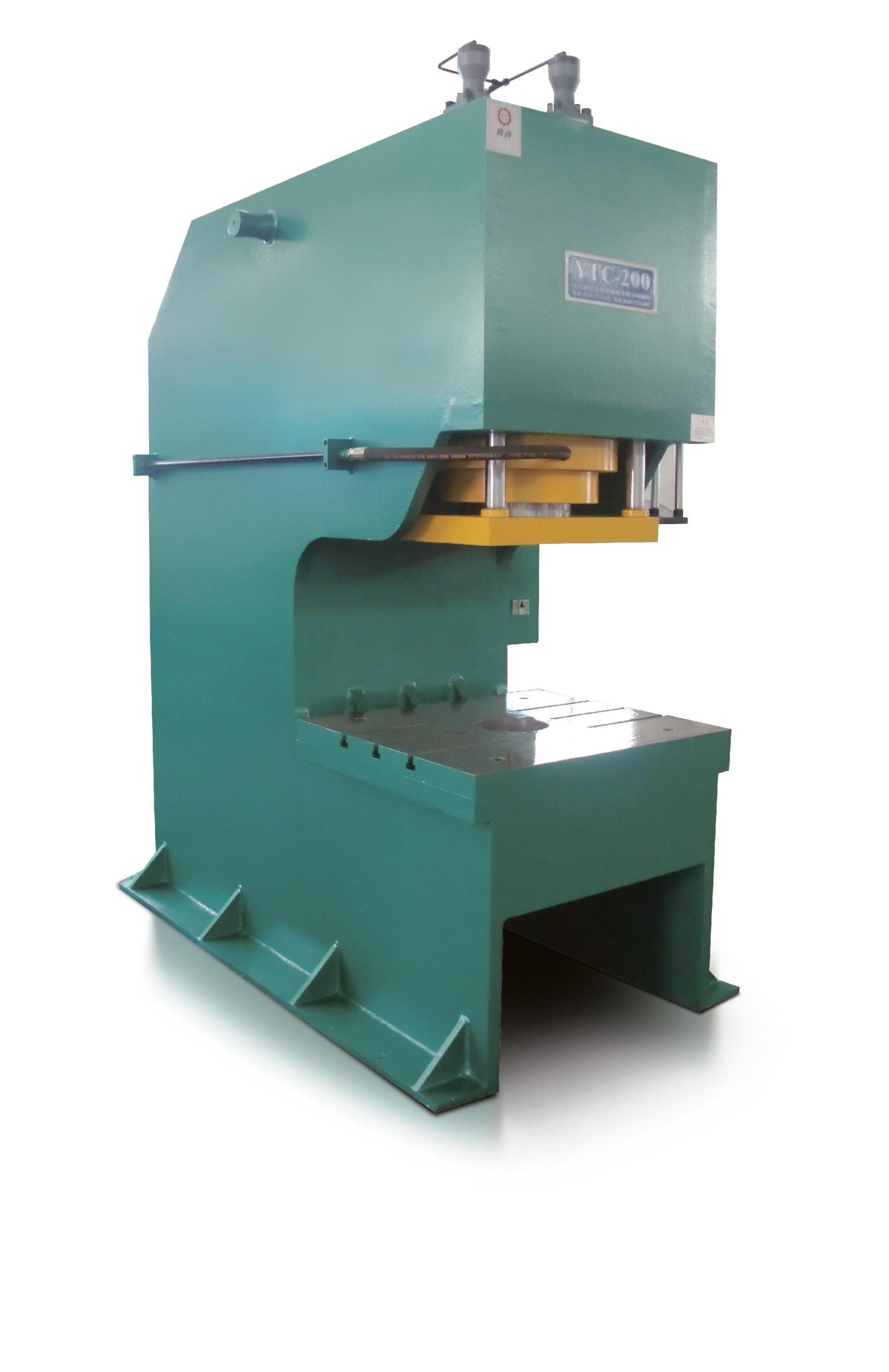

YTC Series 200 Ton C Frame Hydrauli Press

The Introduction of 200 Ton C Frame Hydraulic Press

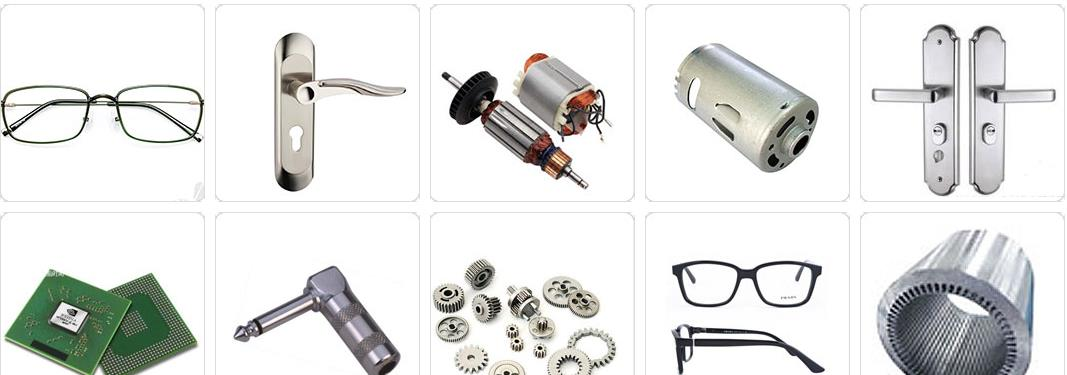

The 200 ton C frame hydraulic press is a versatile machine that can be used for various applications. It is ideal for stamping, forming, shallow drawing, and pressing assembly operations. Additionally, it is capable of forming spectacle parts, lock parts, metal hardware pressing, assembly of electronic connectors, electric components, and rotor & stator of motor, and more.

This kind of hydraulic press machine's stable and durable frame structure, precision guide rails for the slider, and the patented servo intelligent control system with high repeat position accuracy and pressure precision of up to ±0.03mm and ±1 bar, respectively, make it suitable for use in various processes.

Furthermore, the machine's intelligent servo-saving system allows it to save up to 50-70% energy, making it an energy-efficient option. Its infrared safety grating ensures the safety of the operator, and the machine's modular design allows for easy disassembly and maintenance, with faults easily viewable on the touch screen. Finally, its low failure rate, prolonged service life of hydraulic components, and automatic fault alarm function make it a reliable and practical choice for a range of applications.

he 20-ton C frame hydraulic press has the following technical specifications:

Energy-saving and emission-reducing: The hydraulic and electronic control system uses an intelligent servo-saving system, which can save 50-70% energy.

Safety and precision: An infrared safety grating is installed on each machine to effectively protect the operator's safety. The patented servo intelligent control system ensures that the machine's repeat position accuracy is up to ±0.03mm and the pressure precision is ±1 bar.

1. Low failure rate: The servo intelligent patent control system does not perform useless work, which reduces the oil temperature and negative pressure in the oil system, thus reducing the failure rate and prolonging the service life of hydraulic components. The electrical appliances have an automatic fault alarm function and one-button reset function.
2. Stable and durable: The frame structure of the whole machine and precision guide rails for the slider make the machine resistant to shock and side pressure, stable, precise, and durable. It is suitable for blanking, forming, extrusion, and other process uses.
3. Easy maintenance: The whole machine is designed into a modular structure according to different functional modes, which makes it easy to disassemble and maintain. General faults can be viewed directly through the touch screen.

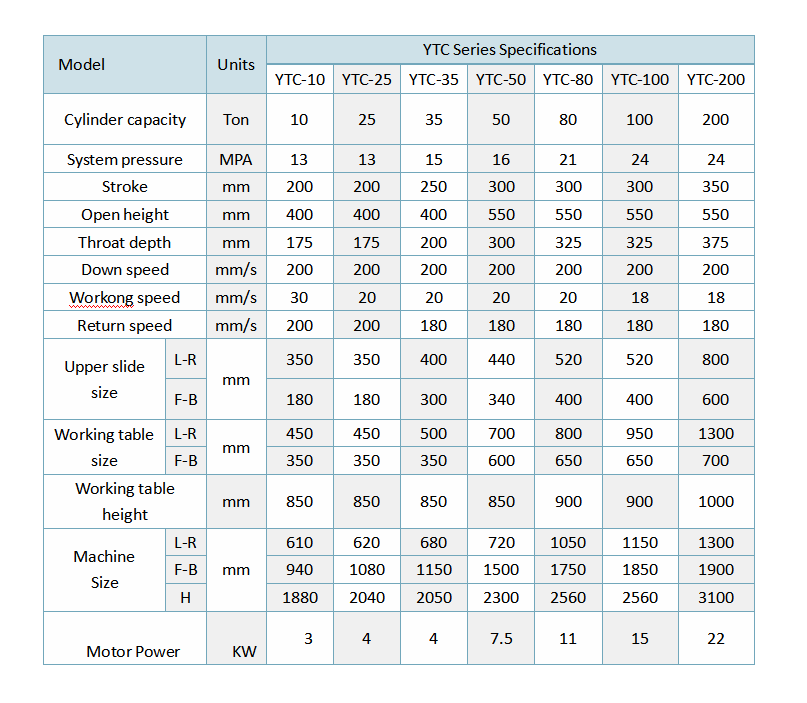

The technical parameters 200 Ton C Frame Hydrauli Press
